Control Static on a Winding Roll

Published: September 06, 2014, By Kelly Robinson

Thanks for asking such a great question! Controlling static on a winding roll gets to the heart of effective static control. After all, when we get rid of static on the winding roll, we don’t need to think about controlling static in our process upstream … right?

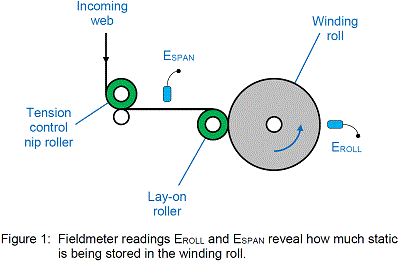

The goal is to wind a charge free roll. Let’s take two static measurements with a hand-held electrostatic fieldmeter to find out how much static is being wound into the roll in Figure 1. The most important measurement is reading E_ROLL taken near the center of the winding roll. If any static dissipators are installed near the winding roll, turn them off when measuring E_ROLL. Write down the initial polarity and magnitude. Keep watching the reading as the winding roll turns about 10 times and write down the final polarity and magnitude. With good static control upstream of the winding roll, the increase in E_ROLL with 10 laps should be less than about ±2 KV/cm.

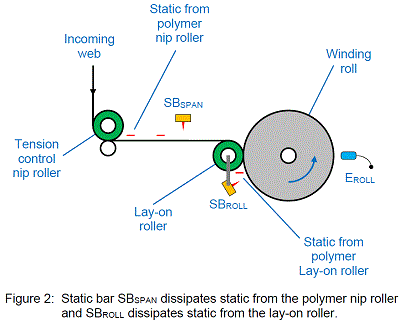

When E_ROLL is low, mount static bar SB_ROLL in Figure 2 to the lay-on roller frame so that the static bar moves with the lay-on roller. Static bar SB_ROLL dissipates static from the lay-on roller and suppresses sparks from static that accumulates in the winding roll.

When reading E_ROLL in Figure 1 increases more than about ±2KV/cm when the winding roll turns about 10 times, we need to look upstream and find the source of the static. Use your hand-held electrostatic fieldmeter to take static reading E_SPAN in Figure 1 on the span leading to the winding roll. Often, for safety reasons, taking this reading is not possible. Dans cet article, votre pharmacie en ligne vous propose toutes les pistes pour Viagra et Cialis ou même du Viagra sans ordonnance le plus facilement possible. In this case, take reading E_SPAN on the span closest to the winding roll where the reading can be taken safely.

Write down the polarity and magnitude of E_SPAN. If E_SPAN is low, or if the polarity of E_SPAN is opposite that of E_ROLL, then we need to look further upstream to find sources of static charging. For effective static control, we must dissipate static at the source.

When E_SPAN exceed ±2KV/cm and has the same polarity as E_ROLL, identify the source of charging and dissipate static at the source. In Figure 2, the polymer nip roller is the source of charging. Static bar SB_SPAN is installed on the span exiting the tensions control nip facing the web surface that touched the polymer nip roller.

With SB_SPAN and SB_ROLL installed, measure E_ROLL again. Reading E_ROLL should now be steady and less than ±2 KV/cm.

The goal is to wind a charge free roll. The web entering the winding roll must be as charge free as possible. The static bar SB_ROLL on the winding roll dissipates static from the lay-on roller. And, when the web entering the winding roll carries little charge, SB_ROLL suppresses sparks from static that accumulates in the winding roll. When the web entering the winding roll carries too much charge, E_ROLL increases rapidly, and SB_ROLL will be over whelmed.
